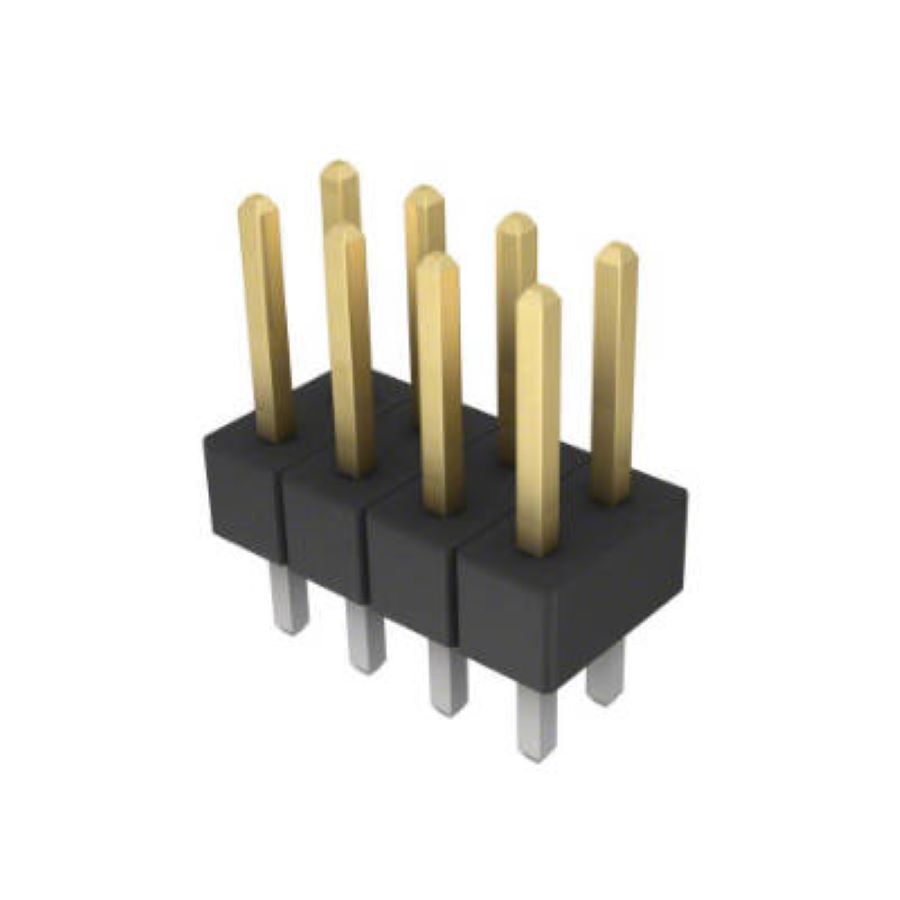

PBC04DAAN
Manufacturer:
Sullins Connector Solutions
Mfr.Part #:
PBC04DAAN
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.2 mm |
| Width | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Height | 2.54 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Color | Black |
| Gender | Male |
| Number of Contacts | 8 |
| Connector Type | Male Pin |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Plastic |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Mating Post Length | 5.84 mm |
| Termination Post Length | 3.05 mm |
Stock: 9437
Distributors
pcbx
pcbxUnit Price$0.46832
Ext.Price$0.46832
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46832 | $0.46832 |
| 10 | $0.39569 | $3.95690 |
| 25 | $0.37481 | $9.37025 |
| 50 | $0.35503 | $17.75150 |
| 100 | $0.33629 | $33.62900 |
| 300 | $0.31769 | $95.30700 |
| 500 | $0.30012 | $150.06000 |
| 1000 | $0.28578 | $285.78000 |
| 3000 | $0.27000 | $810.00000 |
| 5000 | $0.25510 | $1275.50000 |
| 10000 | $0.24782 | $2478.20000 |
